Specifications
| Size | 4" x 60 yds. |
|---|---|
| Rolls/Case | 8 |
| Mil | 2.0 |
| Dimensions | Core: 3" Roll Diameter: 5" |
| Shelf Life | 6 months from date of manufacture at 24° C (75° F). 18 months from date of manufacture at 4° C (40° F). |
| Appearance | Changed from brown film with a white paper liner to translucent/clear film with a clear plastic liner in March 2024. |
| Application | Ensure surface is clean and clear of debris. Bonding: Application Temperature: 107° - 140° C (224° - 284° F) Apply for 10 - 60 seconds with 15 - 40 PSI. Up to 70 PSI may be needed depending on material size. Pre-Tacking: Application Temperature: 70° - 110° C (158° - 230° F) Apply for 10 - 30 seconds with 15 - 40 PSI. Curing/ Crosslinking: Creates highest bond strength. Fast Curing: Application Temperature: 140° - 177° C (284° - 350° F) Apply for 8 - 10 minutes with 10 - 20 PSI. Slow Curing: Application Temperature: 110° - 121° C (230° - 250° F) Apply for 4 - 15 hours with 10 - 20 PSI. |
| Unit Weight | 0.912 kg |
| Specification | Imperial | Metric |
|---|---|---|
| Size | 4" x 60 yds. | 10 cm x 55 M |
| Thickness | 2.0 mil | 51 Microns |

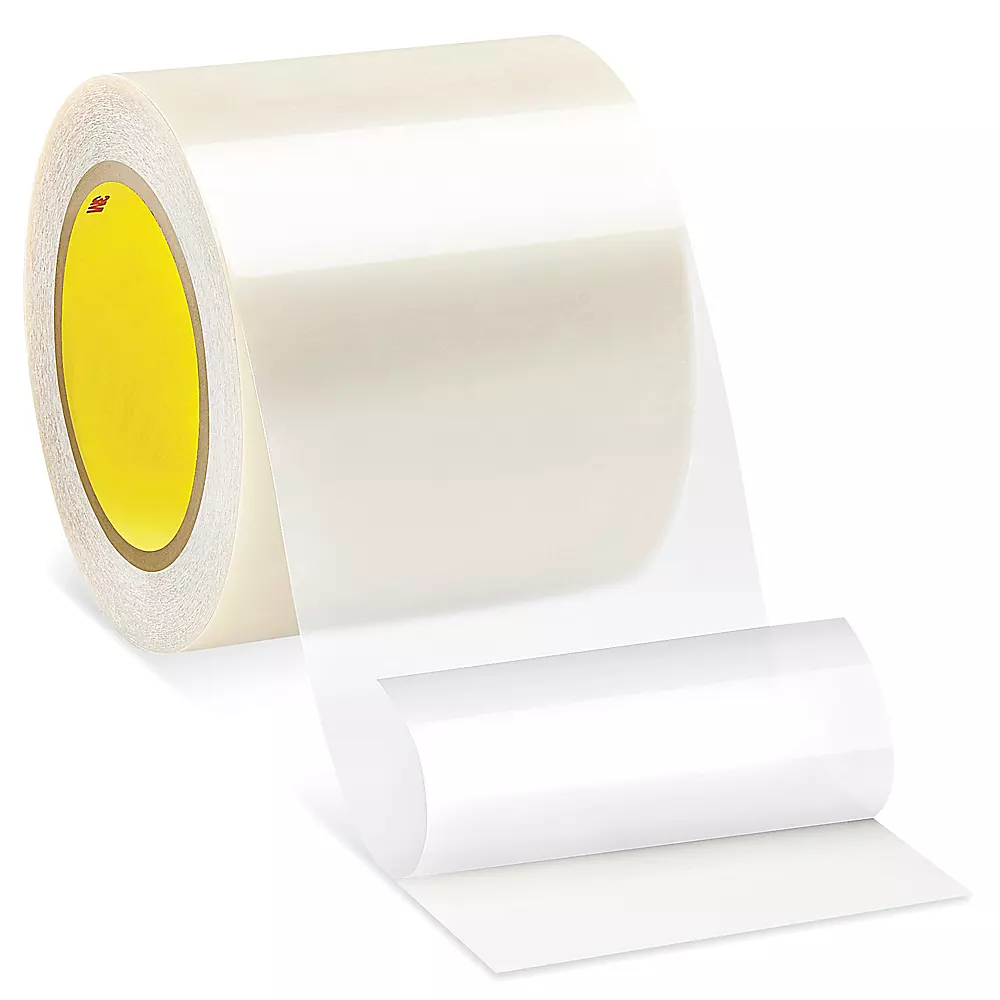

All 3M 583 Bonding Film sizes
- Mil
- 2.0
