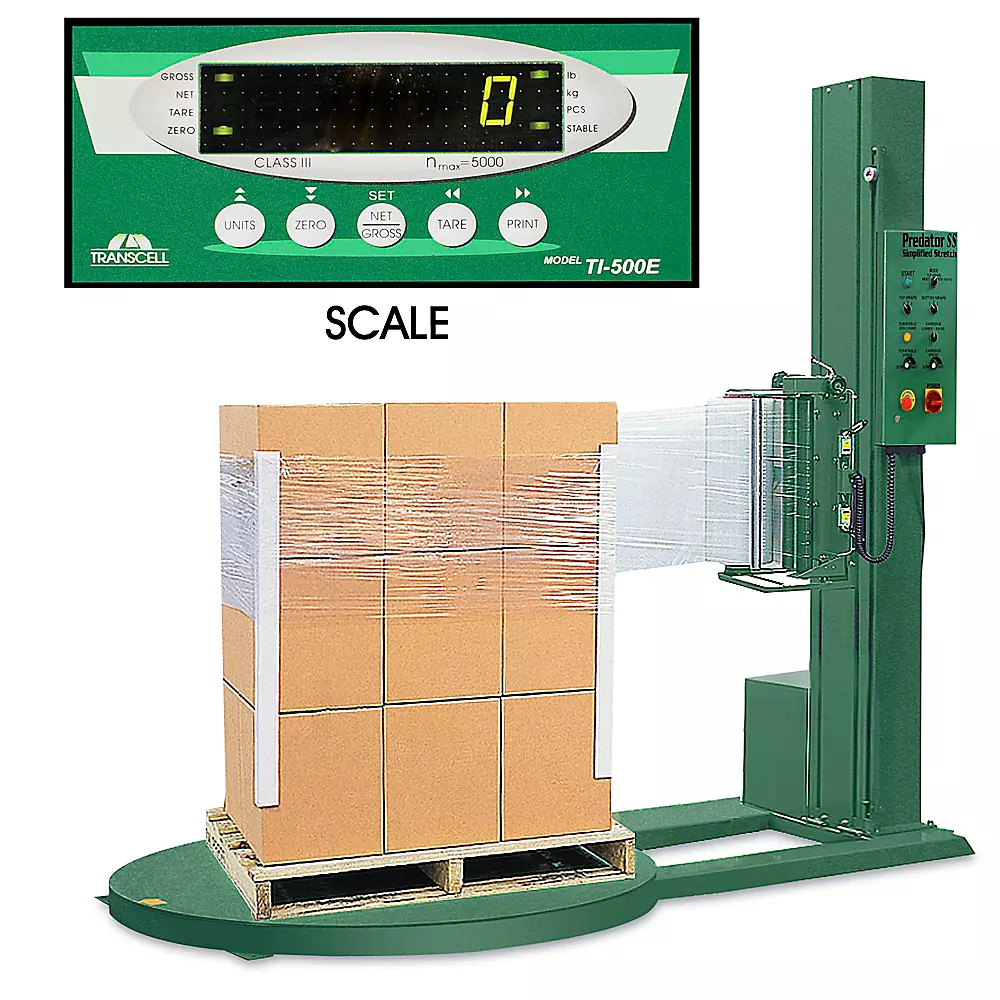

Semi-Automatic Stretch Wrap Machine with Scale - 52 x 52 x 80"
Model NED-3702
Part of NorthEdge Semi-Automatic Stretch Wrap Machines with Scale
Specifications
| Type | Semi–Automatic Stretch Wrap Machines With Scale |
|---|---|
| Max. Skid Size L x W x H | 52 x 52 x 80" |
| Capacity/Accuracy | 4,000 lbs. x 1 lb. |
| Roll Width | 20" |
| Shpg. Wt. | 1,500 lbs. |
| Shipment - Special Handling | Will not fit on standard liftgate. Must be removed from shipping carrier with a forklift or other suitable lifting device. Note: Other items on the same order may also be impacted. |
| Returns | Returns cannot be accepted for this item. If damaged or defective please contact NorthEdge. |
| Warranty | 2 years Limited to replacement of damaged/defective parts only. NorthEdge does not repair. |
| Dimensions | Overall: 98 x 91" (L x H) Turntable: 60 x 4 1/4" (Diam x H) Power Cord: 17' |
| Temperature | Performance: 0° C (32° F) and above Will not work below this temperature. |
| Compatibility | Requires a forklift. Fork Width Required: 36" For Electric or Long Fork Pallet Trucks: May need to purchase a porch attachment for the optional ramp. Can be connected to a printer with the RS-232 serial port. |
| Features | Turntable: Low profile Wrap Height: Up to 80" Scale Display: 6 digit LED with 3/4" numbers |
| Usage | NorthEdge scales are pre-calibrated. Does not need to be calibrated upon receipt. Yearly calibration maintenance by an authorized dealer is recommended. Standard photo eye reads loads 24" or taller. Photo Eye Sensor: Will work with red film. Will not work with dark colored (black, blue, green) films or dark loads under clear film. Color Sensitive Photo Sensor for Dark Films: NED-1020 Not explosion proof. Do not use with an extension cord. Do not plug into a GFCI outlet. |
| Specifications | Scale is not NTEP certified. C-UL Listed |
| Shipping | Ships flat |
| Videos | Troubleshooting: EO Error Carriage Not Lowering Carriage Not Raising Carriage Will Not Raise in Automatic Mode Turntable Troubleshooting |
| Unit Weight | 816.466 kg |
| Specification | Imperial | Metric |
|---|---|---|
| Load Capacity | 4,000 lbs. | 1814 kg |
| Max. Skid Size | 52 x 52 x 80" | 132 x 132 x 203 cm |
| Shipping Weight | 1,800 lbs. | 816 kg |
| Roll Width | 20" | 51 cm |
All NorthEdge Semi-Automatic Stretch Wrap Machines with Scale sizes
Semi–Automatic Stretch Wrap Machines With Scale
| Model No. | Max. Skid Size L x W x H | Capacity/Accuracy | Roll Width | Shpg. Wt. | Actions |
|---|---|---|---|---|---|
| NED-3702 | 52 x 52 x 80" | 4,000 lbs. x 1 lb. | 20" | 1,500 lbs. | |
| NED-8924 | 52 x 52 x 110" | 4,000 lbs. x 1 lb. | 20" | 1,570 lbs. |
Optional Ramp
Call with the model number for volume pricing, or add sizes to cart for a quote.
