Will not fit on standard liftgate. Must be removed from shipping carrier with a forklift or other suitable lifting device. Note: Other items on the same order may also be impacted.
Returns
Returns cannot be accepted for this item. If damaged or defective please contact NorthEdge.
Warranty
2 years Limited to replacement of damaged/defective parts only. NorthEdge does not repair.
Dimensions
Overall: 116 x 92" (L x H) Turntable: 65 x 3 1/4" (Diam x H)
Material
All steel construction
Temperature
Performance: 0° C (32° F) and above Will not work below this temperature.
Compatibility
Requires a forklift. Fork Width Required: 36" For Electric or Long Fork Pallet Trucks: May need to purchase a porch attachment for the optional ramp.
Usage
Standard Photo Eye Sensor: Reads loads 24" or taller. Will work with red film. Will not work with: Dark colored (black, blue, green) films. Dark loads under clear film. Loads with large holes. Replace photo eye with NED-4048 for these types of loads. Not explosion proof. Do not use with an extension cord. Do not plug into a GFCI outlet.
Specifications
V belt drive 60 Hz, AC motor Allen-Bradley Micro 830 PLC C-UL Listed
Shipping
Ships assembled
Videos
No Power Troubleshooting Carriage Will Not Raise in Automatic Mode Carriage Will Not Raise Carriage Will Not Lower
Unit Weight
612.35 kg
Specification
Imperial
Metric
Max. Skid Size
52 x 52 x 80"
132 x 132 x 203 cm
Load Capacity
4,000 lbs.
1814 kg
Max. Roll Width
20"
51 cm
Shipping Weight
1,350 lbs.
612 kg

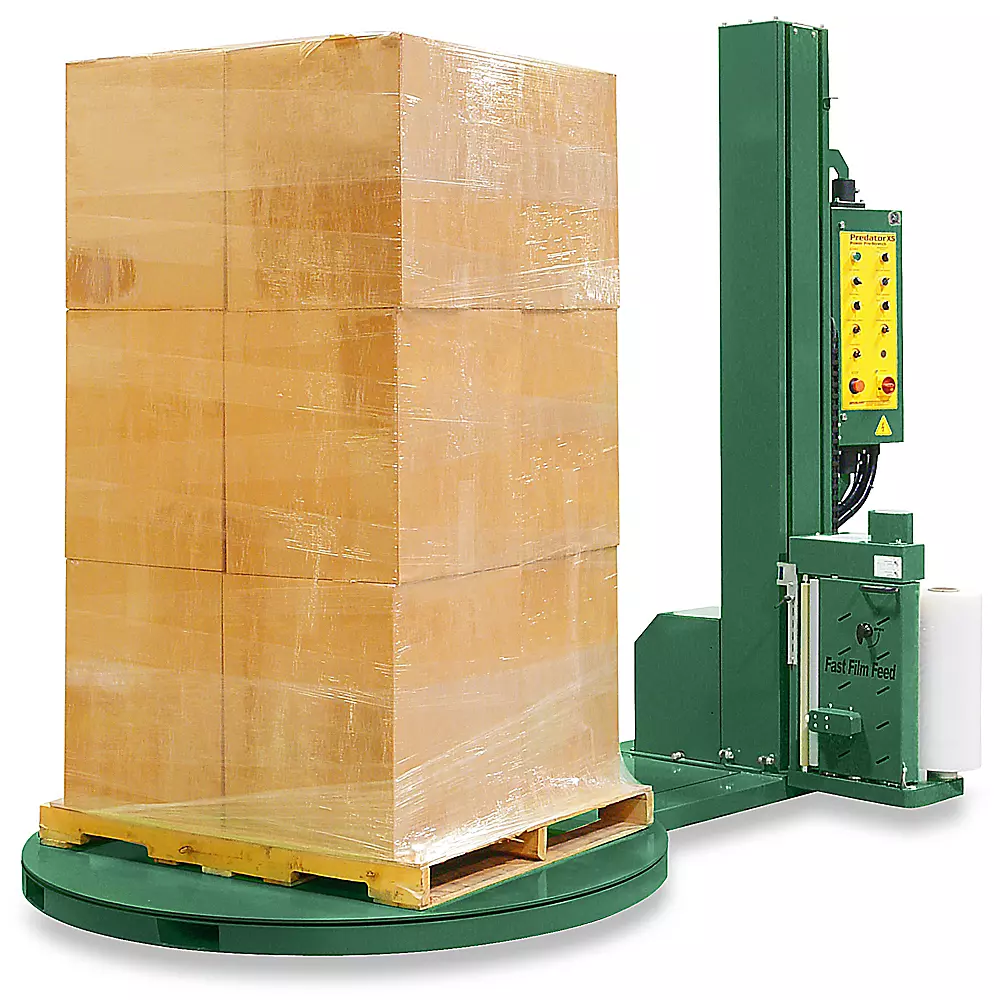

All NorthEdge Automatic Stretch Wrap Machine sizes
