Will not fit on standard liftgate. Must be removed from shipping carrier with a forklift or other suitable lifting device. Note: Other items on the same order may also be impacted.
Returns
Returns cannot be accepted for this item. If damaged or defective please contact NorthEdge.
Warranty
2 years Limited to replacement of damaged/defective parts only. NorthEdge does not repair.
Dimensions
Overall: 98 x 91" (L x H) Turntable: 60 x 3 1/4" (Diam x H)
Temperature
Performance: 0° C (32° F) and above Will not work below this temperature.
Compatibility
Requires a forklift. Fork Width Required: 36" For Electric or Long Fork Pallet Trucks: May need to purchase a porch attachment for the optional ramp.
Features
Turntable: Low profile Wrap Height: Up to 80"
Usage
Standard photo eye reads loads 24" or taller. Photo Eye Sensor: Will work with red film. Will not work with dark colored (black, blue, green) films or dark loads under clear film. Color Sensitive Photo Sensor for Dark Films: NED-1020 Not explosion proof. Do not use with an extension cord. Do not plug into a GFCI outlet.
Specifications
C-UL Listed
Shipping
Ships assembled
Videos
Troubleshooting: EO Error Carriage Not Lowering Carriage Not Raising Carriage Will Not Raise in Automatic Mode Turntable Troubleshooting
Unit Weight
532.971 kg
Specification
Imperial
Metric
Load Capacity
4,000 lbs.
1814 kg
Max. Skid Size
52 x 52 x 80"
132 x 132 x 203 cm
Shipping Weight
1,175 lbs.
533 kg
Roll Width
20"
51 cm

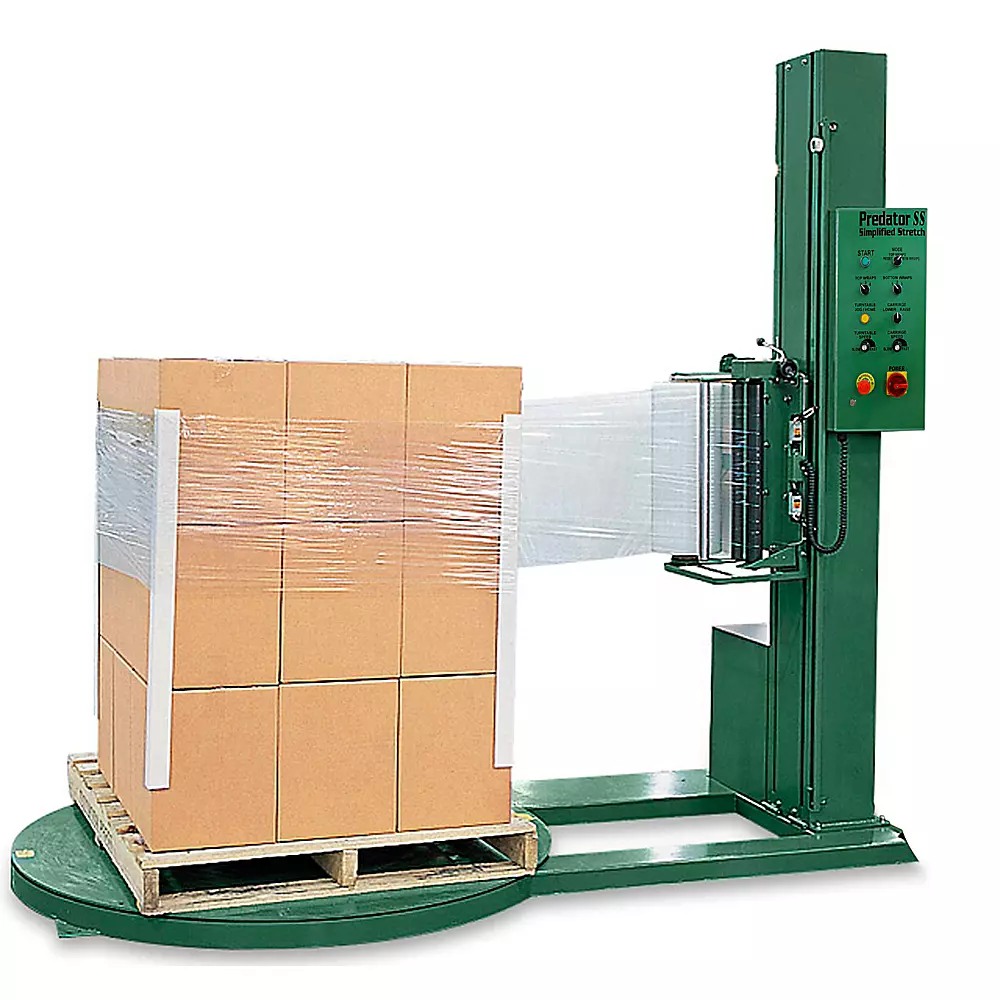

All NorthEdge Semi-Automatic Stretch Wrap Machines sizes
