Will not fit on standard liftgate. Must be removed from shipping carrier with a forklift or other suitable lifting device. Note: Other items on the same order may also be impacted.
Returns
Returns cannot be accepted for this item. If damaged or defective please contact NorthEdge.
Warranty
2 years Limited to replacement of damaged/defective parts only. NorthEdge does not repair.
Dimensions
Overall: 98 x 129" (L x H) Turntable: 60 x 3 1/4" (Diam x H) Power Cord: 17'
Temperature
Performance: 0° C (32° F) and above Will not work below this temperature.
Compatibility
Requires a forklift. Fork Width Required: 36" For Electric or Long Fork Pallet Trucks: May need to purchase a porch attachment for the optional ramp.
Features

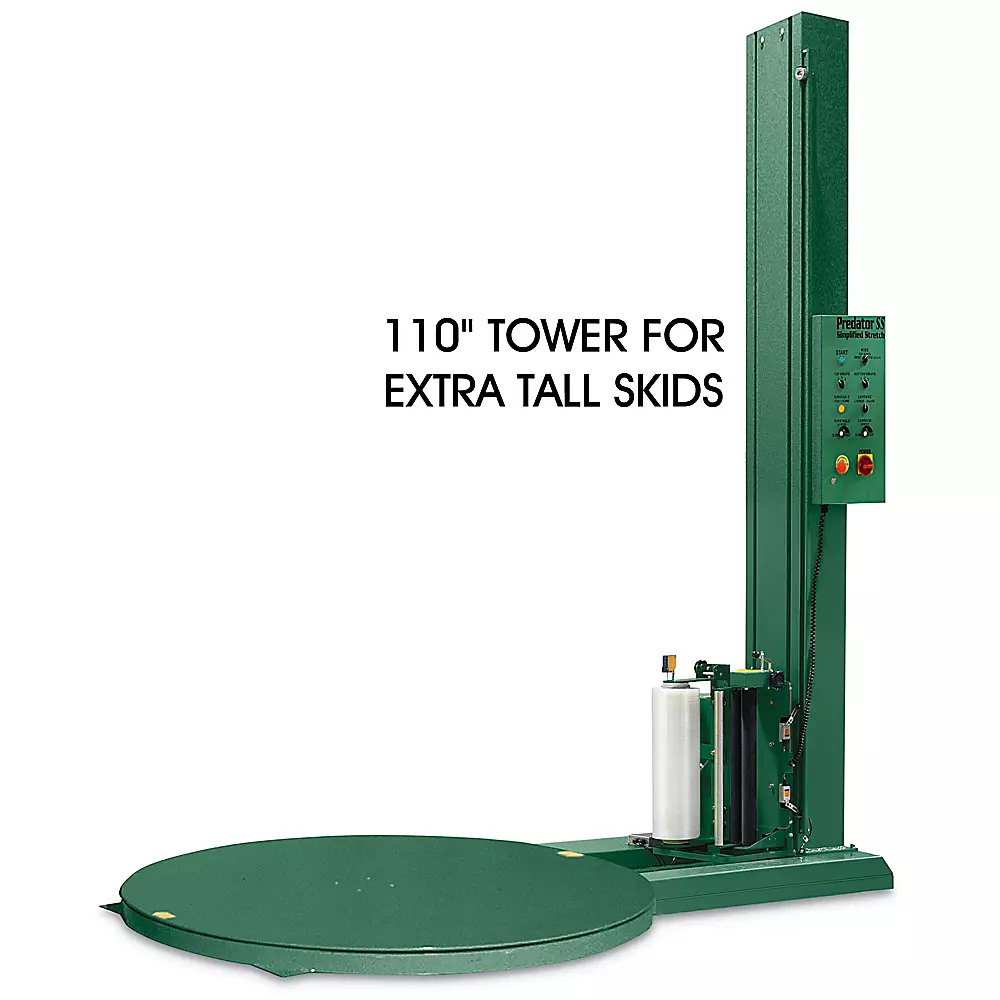

Turntable: Low profile Wrap Height: Up to 110"
Usage
NorthEdge scales are pre-calibrated. Does not need to be calibrated upon receipt. Yearly calibration maintenance by an authorized dealer is recommended. Standard photo eye reads loads 24" or taller. Photo Eye Sensor: Will work with red film. Will not work with dark colored (black, blue, green) films or dark loads under clear film. Color Sensitive Photo Sensor for Dark Films: NED-1020 Not explosion proof. Do not use with an extension cord. Do not plug into a GFCI outlet.
Specifications
C-UL Listed
Shipping
Ships flat
Videos
Troubleshooting: EO Error Carriage Not Lowering Carriage Not Raising Carriage Will Not Raise in Automatic Mode Turntable Troubleshooting
Unit Weight
566.99 kg
Specification
Imperial
Metric
Load Capacity
4,000 lbs.
1814 kg
Max. Skid Size
52 x 52 x 110"
132 x 132 x 279 cm
Shipping Weight
1,250 lbs.
567 kg
Roll Width
20"
51 cm
All NorthEdge Semi-Automatic Stretch Wrap Machines sizes
